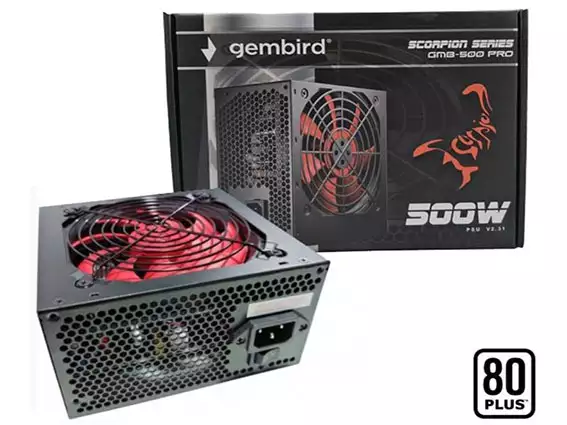

Manufacturer : Gembird - Scorpion Series Model: GMB-500 PRO Power: 600W 80+, CE/TuV/ ROHS Format: ATX V2.31 and EPS SINGLE RAIL - Active PFC - Energy efficiency 80+ : 82%, 85%, 82% at 20%, 50%, 100% load - Red color 12cm ball bearing Fan temperature controlled for low-noise performance. MTBF: 100,000 h - Protection: OVP/ UVP/ OPP/ SCP (Over Voltage Protection, Under Voltage Protection, Over Power Protection, Short Circuit Protection) - 100% burn-in/vibration/Hi Pot/Leakage current Test. - Incl. 1.2m EU power cord - Input socket +I/O - On/Off Switch - Cable length: all > 50cm. Dimension: 150x140x85mm - Connectors, cables all with BLACK MESH : 1x MB ATX 12V 20+4 Pin (50cm) 1x CPU ATX12V 4+4 Pin (55cm) 1x PCI-E 6+2 (8) Pin (45cm + 15cm) 2x Molex 4 Pin (50molex +15sata +15sata) 4x S-ATA (50molex +15sata +15sata +15sata) DC-Output: +12V SINGLE RAIL : nominal 40A (peak 52A) for MB + GPU like AMD Radeon RX5700 +5V : 12A (peak 20A) +3.3V : 12A (peak 20A) -12V : 0.3A (peak 0.3A) +5Vsb : 2A (peak 2A) ================================================================== Proizvodac: Gembird - Scorpion Series Model: GMB-500 PRO Snaga: 600V 80+, CE / TuV / ROHS Format: ATX V2.31 i EPS - Aktivni PFC - Energetska efikasnost 80+ : 82%, 85%, 82% pri 20%, 50%, 100% opterec´enja - Ventilator sa kuglicnim ležajem crvene boje od 12cm, za performanse sa niskom bukom. MTBF: 100.000h - Zaštita: OVP / UVP / OPP / SCP (Zaštita od prenapona, Podnaponska zaštita, Zaštita od prekomerne struje, zaštita od kratkog spoja) - 100% izgaranje / vibracije / Hi Pot / Test curenja struje. - Pakovanje sadrži EU kabl za napajanje od 1,2m - Ulazna uticnica + I / O - Prekidac za ukljucivanje / iskljucivanje - Dužina kabla: sve > 50cm. Dimenzije: 150x140x85mm - Konektori, kablovi sa CRNIM MREŽAMA: 1x MB ATX 12V 20+4 Pin (50cm) 1x CPU ATX12V 4+4 Pin (55cm) 1x PCI-E 6+2 (8) Pin (45cm + 15cm) 2x Molex 4 Pin (50molex +15sata +15sata) 4x S-ATA (50molex +15sata +15sata +15sata) DC-izlaz: + 12V SINGLE RAIL: nominalno 40A (maksimum 52A) za MB + GPU poput AMD Radeon RX5700 + 5V: 12A (maksimum 20A) + 3.3V: 12A (maksimum 20A) -12V: 0,3A (maksimum 0,3A) + 5Vsb: 2A (maksimum 2A)
